Going Nuts in Orion to Mars?

The successful Orion test flight in early December focused attention on the Orion capsule’s role in future NASA missions beyond low earth orbit. Much of the discussion on the Internet has dealt with the necessity of Orion at all, and whether it could be replaced by one of the commercial crew vehicles NASA recently funded.

The on-line discussion is frequently sidetracked by the all-too-common misunderstanding that Orion will be the sole habitat for 4-6 astronauts on the 2-3 year Mars mission. I Googled “orion mars” and found a comment to a Gizmodo article wondering how 5 or 6 astronauts could spend months in such a tiny capsule heading for Mars—it was posted 2 days after the Orion test flight!

The short answer is: nobody expects anything of the sort. Orion is the astronauts’ taxicab from the launch pad in Florida to the Mars transit vehicle in earth orbit at the start of the mission, then again and most importantly for the high-speed entry into earth’s atmosphere at the end of the mission (see figure 1). This is well-established in the NASA Mars Design Reference Mission that describes the general characteristics of the 100 thousand pound habitat (ref. 1).

Figure 1. Mars mission scenario. See Orion's major usage at steps 7, 9 and 14

However, the misunderstanding was a central feature of the movie “Capricorn One” (1978) (ref. 2). This fictional story of a hoaxed Mars mission includes the image of the three astronauts spending long months inside their cramped Apollo command module en route to Mars.

The movie used accurate mockups of the Apollo capsule, the lunar lander and the space suits, very familiar to TV viewers from the moon landings only a few years earlier, but largely irrelevant to the Mars mission being portrayed. The producers knew that such familiarity could enhance the credibility of their story, encouraging the audience’s willing suspension of disbelief.  The bizarre tale of a faked mission and a government cover-up that required the (spoiler alert!) murder of the astronauts themselves would then have seemed even more thrilling.

But surely (I thought), no one could seriously believe that NASA would send highly-trained astronauts in peak physical condition on a multi-month trip to Mars in just an Apollo capsule, with no room for exercise or privacy, any more than that they would land on Mars using an unmodified, non-aerodynamic Apollo lunar module.  After all, the movie was an action adventure, not a documentary.

Apparently I was wrong.  Now, over three decades later, when I lecture on the medical aspects of NASA’s planned exploration-class missions to Mars, lay and professional audiences alike still ask how the astronauts could really stay in such a small capsule for such a long flight without going nuts.  Of course, why should they know any better?  The Apollo astronauts went to the moon inside the command module, so why not all the way to Mars?  If the Mars trip takes 60 to 100 times longer, maybe it is just the price that the astronauts have to be willing to pay.  After I explain that the Mars transit vehicle would be much larger and roomier, everyone seems relieved that NASA wouldn’t be so inconsiderate of its high-value crewmembers.

What is more surprising is how many space professionals also have that misunderstanding. Even NASA insiders were confused in 2004 when the Crew Exploration Vehicle, or CEV, was announced, whether it was the Mars transit craft that would house the six astronauts for the half-year transits to and from Mars, or just the capsule they rode in from Earth to the transit vehicle.  This confusion was exacerbated by the name: if it was just the taxicab, why was “exploration” part of its name?

Back in October 2007, I lined up with NASA Johnson Space Center workers who waited patiently for a chance to sit inside the new, low-fidelity Orion mockup.  It was in the configuration with six seats, one of which was occupied by mannequins and another left empty.  When four of us—all space professionals but not engineers—were seated inside it, marveling at the close quarters, it quickly became clear that three of us actually thought this was the condition in which the six-person crew would make the six-month trip to Mars!

After a lecture at a space life sciences conference in February 2008, a long-time NASA employee—also not an engineer—confessed his relief that the crew wouldn’t be cooped up in the Orion for the long trip to Mars. Other NASA science managers have wondered the same thing, judging from comments I have frequently heard.

Not surprisingly, it is not just NASA people that are confused.  A well-informed science writer asked me the question during an interview some years ago.  About the same time, a retired astronaut sheepishly admitted that he thought the same, but added that he hadn’t kept up with the Mars vehicle design details.  I have also read a comment by a respected leader of a space advocacy organization who wondered how Orion’s life support system would support a crew en route to Mars.

Apparently the misunderstanding predates even Capricorn One. In 1966, Eric John Bishop felt it necessary to describe his work designing an underwater training mockup of what became the Skylab space station as supporting the development of a large vehicle for planetary missions, because the astronauts couldn’t be expected to stay in the Apollo for such a long durations (ref. 3).

In 2006, NASA gave the name Orion to the CEV, and in 2011 the acronym CEV was replaced by MPCV for Multi-Purpose Crew Vehicle. Exploration was gone from the moniker but not from its mission; in fact, Orion was specifically focused on atmospheric entry at interplanetary speeds, and thus over-engineered and overpriced for anything less, as NASA managers have publicly confirmed. But the confusion remains.

Why do so many people seriously think that NASA would confine half a dozen astronauts in such a small space for six months or longer?  Why does that seem even remotely possible, let alone acceptable, to anyone who has imagined the effects of such confinement on the crew’s mental and physical health and on mission success?

Part of the answer is probably unfamiliarity with the realities of long-duration spaceflight, at least among the general public. Another possibility became clear during the Orion flight test. Orion was described by the press as the vehicle that will take astronauts to the asteroids and Mars. Message boards were overflowing with confusion on that point. The official Orion fact sheet describes it as “this new spacecraft [that] will take us farther than we’ve gone before, including Mars” (ref. 4). And the Fall 2014 issue of Roundup (ref. 5), the self-described official publication of the Johnson Space Center, has a cover image of what is clearly a late-model design for Orion with what is clearly Mars in the background and with what is clearly no other vessel nearby (see figure 2). This constitutes an official graphic statement that Orion will at least operate near Mars alone, in direct contradiction to all NASA Mars DRM planning! Thus, NASA’s own messaging is misleading.

Figure 2. NASA Johnson Space Center Roundup showing Orion spacecraft all alone in Mars orbit.

That such a central feature of the NASA’s exploration architecture is so poorly grasped is troubling as well as surprising.  NASA has released high-quality animations of lunar and Mars mission scenarios, which are available on agency websites and on YouTube.  Program officials and industry experts have described the architecture in public presentations around the country. Still the misunderstanding persists.

Space flight sometimes seems inherently mystifying. For example, the physics of weightlessness are a mystery to many people who have never experienced it, and are frequently misrepresented in movies.  But most people working in space development venues do not require more than a passing knowledge of such things.  They understand enough to do their jobs well, and they leave the rest to other specialists.

Human exploration of space promises great benefits but only at great risk and great expense. Any meaningful public debate of the costs and benefits should be based on reality, not misunderstanding.

---

References.

1. Drake, Bret G. (editor), Human Exploration of Mars Design Reference Architecture 5.0 (NASA/SP-2009-566), NASA, Washington, D.C., 2009, http://www.nasa.gov/pdf/373665main_NASA-SP-2009-566.pdf (accessed Dec. 23, 2014). See “bat chart” on page 5, and Mars Transit Vehicle description on p. 36.
2. Capricorn One (http://www.imdb.com/title/tt0077294/, accessed Dec. 8, 2014).
3. Bishop, E.J. Brooklyn, Buck Rogers and Me. iUniverse, Inc., 2003, http://bookstore.iuniverse.com/Products/SKU-000125340/Brooklyn-Buck-Rogers-and-Me.aspx (accessed Dec. 23, 2014).
4. Orion spacecraft overview, NASA, 2012.  (http://www.nasa.gov/sites/default/files/617409main_orion_overview_fs_33012.pdf, accessed Dec. 8, 2014).
5. Roundup, Fall 2014, http://jscfeatures.jsc.nasa.gov/media/22_Fall_2014.pdf (accessed Dec. 23, 2014).

A Tale of Two Martins

Back in 2008, while trolling for obscure space history trivia in back issues of Aviation Week, I found a good one from 1965: a black and white illustration (figure 1) from The Martin Marietta Corporation of a lifting body rescue vehicle coming to the aid of an Apollo spacecraft that had somehow become stranded in low Earth orbit (ref. 1).  The rescue vehicle had an attached service module, and both the lifting body and its service module were labeled NORS, which I recalled from somewhere stood for National Orbital Rescue Service.

Martin developed the “SV-5” lifting body shape (ref. 2),  which the U.S. Air Force flight-tested as the X-24A in the early 1970s (ref. 3).  NASA applied the concept to its X-38 Crew Return Vehicle, evaluated as an attached rescue vehicle for International Space Station astronauts before it was cancelled in 2002 (ref. 4).  There are other shapes for lifting bodies, such as the Dreamchaser spacecraft now in development by Sierra Nevada Corporation (ref. 5).

Figure 1. Astronaut from a SV-5 lifting body rescue vehicle coming to the aid of an Apollo spacecraft in low earth orbit. Credit: Martin Marietta Corp., 1965.

Figure 2. Astronaut from a SV-5 lifting body rescue vehicle coming to the aid of an Apollo spacecraft in low earth orbit. Credit: Columbia Pictures, 1969.

Compare that image to the color photo (figure 2) that is a press release from Columbia Pictures for the movie, Marooned, released in December 1969 (ref. 6).  It shows the climactic scene from the movie. The similarity is striking, but maybe not a coincidence. Martin Caidin, the author of both the 1964 novel Marooned—in which a stranded Mercury astronaut is rescued by his best friend flying the new Gemini spacecraft—and the 1969 up-dated novel-of-the-movie and also a technical consultant for the movie, certainly read Aviation Week and would have seen that Martin Marietta concept artwork. Caidin may have been struck by the familiar space-rescue theme, and recalled it when he revised his novel for a movie. Maybe this is a peek behind the movie-magic curtain.

On closer inspection, the Martin Marietta concept’s service module appears to be a Gemini capsule and adapter section, which in 1965 was the new spacecraft built by another company, McDonnell. It seems to have Gemini-style windows and open right-side crew hatch as well as its general shape. It is impossible to tell from the picture, but perhaps Martin imagined that the nose section of the Gemini containing the parachutes and the re-entry maneuvering thrusters could be eliminated entirely and the remainder of the spacecraft bolted directly to the lifting body, to be disposed of before re-entry. It is unusual to see a company explicitly subsume another company’s product, but Martin provided the Titan boosters for the Gemini capsules and the company’s artist may have felt comfortable enough with it to use Gemini in the supporting role.

Martin Caidin (1927-1997) was an American author and authority on aviation and astronautics and an accomplished pilot (ref. 7).  He described his involvement with the Mercury and Gemini programs as “a government consultant, newsman and broadcaster” (ref. 8).  I didn’t read much of his aviation work in my youth, but I have vintage hardcover editions of his spaceflight novels Marooned (1964), No Man’s World (1967), Four Came Back (1968), Marooned (updated for the movie, 1969) and The Cape (1971) (ref. 9).  As an adolescent space geek at a time before the Internet provided abundant space information, I read Caidin’s books as contemporary technical fact with a heavy overlay of human drama. Today I can re-read them to recapture the zeitgeist of outer space as Cold War battleground, its single-combat victor not yet determined.

In his later years, Caidin claimed the power of telekinesis although he declined invitations from well-known debunker James Randi to be tested in controlled circumstances (ref. 10).  The non-telekinetic aspects of his lifestyle were manifested in his writing style—sort of Dashiell Hammett for the Space Age. Marooned (ref. 11),  in particular, appealed to me because of its high technical accuracy and gritty realism in describing the Mercury and Gemini programs: the 1964 novel has eleven appendices listing the technical data, calculations, etc., substantiating the action in the novel. Caidin liked to say that Mercury astronaut Wally Schirra found only one technical error in the book but never divulged what it was, so he could always stay one step ahead of the author. Schirra was a prankster and it would have been typical of him to tell Caidin something like that just to keep him guessing.

Caidin’s technical accuracy and ability to put his characters in real-world dramatic situations had a direct influence on actual space progress on at least two occasions. Deke Slayton gave Caidin’s movie treatment some of the credit for helping to thaw the Cold War enough for his own overdue flight to dock with the Soviets(ref. 12):

Oddly enough, one of the things that moved the joint flight closer to reality was a fictional movie called Marooned, based on a novel by Martin Caidin. In the original version, published in 1964, a Mercury-Atlas 10 astronaut is rescued by a Soviet cosmonaut. The movie had been updated (and Caidin wrote a new novel version as well) showing how a Skylab crew might be saved by a Soviet Soyuz pilot.

The movie never made much money in the United States, but it apparently impressed the Soviets that Americans were ready to consider international flights—especially to demonstrate the concept of space rescue.

The original version Slayton mentioned also had an influence on reality, even more directly than its eventual movie successor, which really only encouraged an international technical project that was already in progress. When the novel was published in mid-1964 (ref. 13),  NASA was preparing to send two-man astronaut teams into orbit aboard the new Gemini spacecraft. By mid-December, just a few months before the first manned Gemini flight, NASA managers directed that mission procedures be modified to avoid the Marooned scenario if the retrorockets failed.

In January 1965 (ref. 14),

…NASA Headquarters sent Flight Operations in Houston a set of preliminary data, with orders to revise the flight plan to protect the Gemini 3 crew against the […] the failure of spacecraft retrorockets to work, stranding the crew in space. Headquarters proposed three OAMS [Orbital Attitude and Maneuvering System] maneuvers to place the spacecraft in a "fail safe" orbit, one from which it would reenter whether the retrorockets fired or not. Actually, Gemini orbits were too low to be permanent, so spacecraft reentry was inevitable. What the fail-safe maneuvers were designed to achieve was the spacecraft's return promptly enough to ensure that the crew survived. [That is, before their oxygen ran out.] Coming as it did less than three months before the planned launch, the new demand threw mission planning into turmoil. But the response was rapid. A revised tentative flight plan was ready in little more than a month, and the final plan followed on 4 March.

NASA planners were capitalizing on the fact that Gemini was the first spacecraft equipped to translate, that is, to maneuver by speeding up and slowing down to change the shape of its orbit around the earth, using its OAMS.  (Of course, every spacecraft the braked out of orbit and landed on Earth was “translating” but that was an irreversible maneuver to lower its orbital altitude to intersect with the atmosphere.)

The conservative, Marooned-inspired belt-and-braces approach was used again on Gemini 4, but then discarded after experience demonstrated that retrorockets were as reliable as the engineers had always said they were. In fact, there were never any failures among the six dozen solid-fuel retrorockets used in sets of three on Mercury spacecraft and in sets of four on Gemini.

Nor were there any failures among the six Apollo spacecraft that flew Earth-orbit missions and used their large, aft-mounted liquid-fueled engines to deorbit; if there had been, they all could have used their side-mounted maneuvering engines to do so. This was the scenario in the movie, but was glossed over lightly to provide the dramatic impetus for the rescue scenario.

In fact, the more likely failure was to orient correctly during the retro maneuver. In 1960, the first test version of the Soviet Union’s Vostok spacecraft accidentally raised its orbit by nearly 250 miles (400 km) because it was oriented nose-forward instead of nose-backward when its single-use liquid-fueled braking engine was fired (ref. 15).  Its two components, the landing capsule and the service module, continued orbiting until 1962 and 1965, respectively. In 1962, the second manned Mercury orbital spaceflight landed 250 nautical miles (460 km) beyond its target due to a combination of misalignment, delayed initiation and underthrust (ref. 16).

Caidin was directly involved in one more non-telekinetic crossover between fiction and reality. In the movie of Marooned, he appeared in a cameo as a radio reporter describing the arrival of the lifting body at Cape Canaveral for its launch on the rescue mission. The fictional news event he was describing on film was the movie manifestation of the 1965 artwork that may have inspired his update of Marooned, which then positioned that movie to influence the course of the first joint American-Russian space mission a decade later.

References.

1. Photograph caption, Aviation Week, Oct. 18, 1965, p. 69.
2. Reed, R. Dale, with Darlene Lister, Wingless Flight, The Lifting Body Story, NASA SP-4220, NASA, Washington, D.C., 1997.
3. “Martin-Marietta X-24A”, http://en.wikipedia.org/wiki/Martin_Marietta_X-24A (accessed Dec. 13, 2014).
4. “NASA X-38”, http://en.wikipedia.org/wiki/NASA_X-38 (accessed Dec. 13, 2014).
5. Described in “Commercial Crew Development”, http://en.wikipedia.org/wiki/Commercial_Crew_Development (accessed Dec. 13, 2014).
6. “Marooned (1969)”, http://www.imdb.com/title/tt0064639/ (accessed Dec. 12, 2014).
7. “Martin Caidin”, http://en.wikipedia.org/wiki/Martin_Caidin (accessed Sep. 27, 2014).
8. Caidin, Martin, Marooned, E.P. Dutton and Co., New York, 1964, acknowledgments, p. 359.
9. “Martin Caidin summary biography”, Internet Speculative Fiction Database, http://www.isfdb.org/cgi-bin/ea.cgi?342 (accessed Oct. 2, 2014).
10. “Martin Caidin”, http://en.wikipedia.org/wiki/Martin_Caidin (accessed Sep. 27, 2014).
11. “Marooned (novel)”, http://en.wikipedia.org/wiki/Marooned_(novel) (accessed Dec. 15, 2014).
12. Slayton, Deke, with Cassutt, Michael, Deke, Forge Books, New York, 1994, p. 277.
13. I don’t know the date when the novel was first published, but it must have been about mid-year because it was reviewed in the October 1964 issue of The Magazine of Fantasy and Science Fiction according to “Martin Caidin summary biography”, Internet Speculative Fiction Database, http://www.isfdb.org/cgi-bin/ea.cgi?342 (accessed Oct. 2, 2014).
14. Hacker, Barton C., and Grimwood, James M., On the Shoulders of Titans: A History of Project Gemini, NASA Special Publication 4203, Washington, D.C., 1977, pp. 228-9. See note 32, memo, Hall to Schneider, "Interim Status Report on Decay Safe Orbits," 11 Dec. 1964.
15. “Korabl-Sputnik 1”, http://en.wikipedia.org/wiki/Korabl-Sputnik_1 (accessed Dec. 10, 2014).
16. Results of the Second United States Manned Orbital Space Flight May 24, 1962, NASA SP-6, NASA, Washington, D.C., 1962, http://ntrs.nasa.gov/archive/nasa/casi.ntrs.nasa.gov/19620004691.pdf (accessed Dec. 22, 2014).

The primary cilium cannot sense the moon's gravity (sorry, you'll have to read the intro to learn more)

A physiologist interested in the effects of gravity on biological process, such as I, must understand how living organisms transduce those effects. In my favorite organism, the human body, there are many avenues for such transduction. At the scale of a meter, the weight of the limbs on the joints is readily sensed in even the most casual of circumstances. The weight of the extended column of bodily fluids as it distends tissues and organs is only slightly subtler, but dramatically noticeable when one hangs upside down by the ankles. At the scale of centimeters, there are the organs of balance, which are collections of cells forming the vestibular system that is specifically sensitized to both static gravity and induced acceleration (which Einstein told us is indistinguishable from gravity).

But some biologists are interested in the effects of gravity at the cellular level, and ask whether a single cell, with a dimension measured in millionths of a meter, can sense gravity independently. There are structures within the cell that might be sensitive enough, but in a normal living cell, the gravitational stimuli would be overwhelmed by non-gravitational stimuli such as thermal agitation.  Determining gravitational sensitivity in isolated single cells requires carefully controlled, well-designed experiments. Unfortunately, some biologists interested in this topic don’t understand the physical phenomena involved (just as some physicists don’t understand biological systems).

In 2009, I read an article in the journal Developmental Dynamics that claimed to demonstrate the gravitational sensitivity of single nerve cells from the developing spinal cord of the zebrafish. I cannot challenge the authors’ knowledge of neural cell physiology, but their interpretation of the physical phenomena involved was in error. Some colleagues (Maneesh Arya and Susan Steinberg) and I drafted a letter to the editor of that journal explaining the errors, but the journal does not print letters to the editor (1).  The editor recommended a full article, which we were not able to undertake.

So, there it ended, with a flawed experiment unchallenged in the published literature. In the interest of making this discussion slightly more public and discoverable on the Internet, I decided to put it here in my blog:

This is all you need to know about the primary cilium for this article.

To the Editor, Developmental Dynamics

I have pondered the article, “The primary cilium as a gravitational force transducer and a regulator of transcriptional noise” (Moorman and Shorr, Dev. Dyn. 2008, vol. 237, pp. 1955-9), for well over a year now, troubled that my understanding of several points of gravity and its influence did not seem to match that of the authors, as detailed on pages 1957-8.

The authors seem to report that isolated cells in culture can detect changes in ambient earth-surface gravity environment due to the passage of the moon and the sun overhead.  They reported a clever and imaginative comparison of neurogenin-3.1:gfp (ngn3.1:gfp) expression in the Rohon-Beard neurons of the developing zebrafish spinal cord at the times of the local high and low tide as evidence of an influence of the moon’s gravity on ngn3.1:gfp expression, presumably mediated through the primary cilium (2). Their report, while recent, already seems to be becoming accepted by others who cite their findings without further question (3, 4).

Unfortunately, their assertions regarding lunar and solar gravity at earth’s surface are flawed (5).

The authors are correct that the effective gravity at earth’s surface is not quite constant.  In addition to extremely small regional and latitudinal variations, there is indeed the influence of the gravities of the sun and the moon.

However, the authors mischaracterized the dominance of the moon in generating earth’s oceanic tides as being due to its gravitational pull on objects at earth’s surface. Instead, the tides are actually due to the greater gradient (e.g., decrease with distance) of the Moon’s gravitational force across the width of the earth than that of the sun.

The tides in the Raritan River near the authors’ laboratory are not reliable indicators of the moon’s gravitational influence in New Brunswick, NJ.  High tides recur at 12.42-hr intervals, first when the moon is above the horizon, and its gravitational influence opposes earth’s downward pull—and again 12.42 hr later when the moon is on the other side of the earth, and its influence would augment earth’s downward pull.  Thus, any randomly selected high tide might be associated with either lunar gravity adding to or subtracting from earth’s surface gravity environment. Low tides occur at the halfway points between successive high tides, so the moon’s gravity influence should be at some intermediate value, neither greatest nor least.

In addition, local high and low tides may be offset from the overhead passage of the moon by many hours.  For example, in New Brunswick on Aug. 15, 2010, moon transit—when the moon was highest overhead and its gravitational influence should have been greatest—was at 17:55 EDT (6) while local high tide was 7.9 hr later (7).

A more appropriate indicator of lowest effective gravity level might be the time of the moon’s transit overhead, when its gravity acts opposite to earth’s; highest effective gravity level might then come 12.42 hours later when the moon is on the opposite side of the earth and its gravity sums with earth’s, which may be calculated as 9.81 m•s-2, defined here as 1.0 G.  In this highly-simplified example, the variation in effective gravity due to the moon’s influence would 0.000034 m•s-2, approximately 0.0000035 G (3.5 micro G), over a period of 12.42 hr, due to the earth’s apparent daily rotation under the moon.  Note that even in this simplified, optimized case, the Rohon-Beard neuron would be required to detect a variation in earth’s surface gravity of one part in 300,000 occurring gradually over more than 12 hours!

The sun’s influence on earth’s surface gravity environment is much greater.  In the simplified case of the Rohon-Beard neuron on earth’s surface directly on a line between earth’s center and the sun, the “weight” sensed by the primary cilium would be greatest when it is on the side of the earth directly opposite from the sun (e.g., at local “midnight”), and thus subject to their summed gravitational pulls, and it would be least when it is directly between the earth and the sun (e.g., “noon”).  At midnight, it would be subject to the sum of earth’s surface gravity plus the sun’s effective gravity at the distance of the earth from the sun, 0.0059 m•s-2, or approximately 0.0006 G (600 micro G); the sum is 1.0006 G.  At noon, it would be subject to the difference, or 0.9994 G.  In our simplified example, the neuron would be subject to this solar variation in effective surface gravity of 0.06% on either side of the average of 1.0 G repeatedly at 24-hr intervals.

Note that the moon’s gravitational influence would be 1/176th of the sun’s, and periodically in phase and out of phase due to its monthly motion relative to the earth.

Thus, Moorman’s and Shorr’s reliance on local tidal occurrence as indicators of greater or lesser lunar gravity at earth’s surface for comparisons of gene expression at high tide and low tide is flawed in at least four respects:

1. being timed to the influence of the far weaker of the two supposed gravitational influences (e.g., the moon instead of the sun)
2. overestimating the supposed lesser lunar influence at low tide which would actually be of an intermediate value
3. assuming that any particular high tide reflected the greatest lunar influence when it might very well have been the weakest, depending on whether the moon was above the horizon or below at the time of high tide, and
4. neglecting a multi-hour lag between the passage of the moon over the laboratory and the occurrence of high tide.

The entire foregoing discussion assumes that the primary cilium of the Rohon-Beard neuron could even detect the gravitational influence of the moon or the sun.  However, the estimated variation of less than 6 percent of one percent is much less than other ambient influences acting upon the neuron, including thermal, vibrational, atmospheric pressure and others.  A 70-kg laboratory technician approaching to within 4 cm of the cell culture before receding again while periodically tending the culture would provide almost as much gravitational influence as the moon!  Modern gravimeters are more than capable of such sensitivities, but they are much more massive than the Rohon-Beard neuron and may require magnetic suspension and liquid helium cooling to eliminate extraneous environmental signals (8).

Even if possible, reliable detection of such a small signal-to-noise ratio would probably require prolonged integration of the signal.  Melvill Jones and Young (9) have proposed that the gravity sensors of the mammalian vestibular system do not signal detection of acceleration until sufficient acceleration has occurred to produce a threshold velocity of approximately 0.20 m•s-1 (recalling that velocity is the integral of acceleration).  Arbitrarily assuming a comparable velocity threshold in the primary cilium of the Rohon-Beard neuron exposed to the moon’s gravitational attraction (0.000034 m•s-2) on earth’s surface, the neuron would need nearly 5,900 seconds (over 1.6 hr) for detection, assuming the force is provided completely and continuously, instead of increasing and then decreasing over a period of many hours.

The authors propose a clever test of their observation of the influence of extraneous gravitational variations by use of a technique they refer to as “gravity clamping.”  Unfortunately, this technique is not further described, but must be assumed to involve centrifugation, as there are no other techniques to increase gravity at earth’s surface by 10% for an extended period of time.  However, centrifugation at 1.1 G would merely increase the background level against which the supposed variation would occur by 10%, since there is no such thing as a “gravity shield” to exclude the presumed influences of the moon and the sun in the authors’ laboratory.  Rotation of the cells during centrifugation would have continually rotated their orientation with respect to the external environment, which might have been responsible for the reported effects if those effects could have been demonstrated convincingly.  An additional control, perhaps using a laboratory test-tube rocker to randomize cell orientations without the putative gravity-clamping confounder, might have produced the same result.

In short, the authors’ assumptions about the presence of a gravitational perturbation for the primary cilium to transduce appear to be unsupportable and their measurements not well controlled.

Then there is the role of the primary cilium of the Rohon-Beard neuron as a gravitational force transducer.  The authors calculated the approximate shear force that would be applied to the cell’s primary cilium by the assumed cyclic changes in earth’s gravitational field.  They calculated the mass of a 10-micro-m diameter cell by multiplying its spherical volume, 523.6 micro-m^3, by the density of water, which they did not state but which I provide as 10-12 g•micro-m^-3 (i.e., 1 g•cm^-3).  The cell’s mass is thus 5.24x10^-14 g, or 5.24x10^-17 kg—one-millionth of the value calculated by Moorman and Shorr.  Thus, earth’s gravitational force on a single cell is 5.24x10^-17 kg  X  9.81 m•s-2, or 5.14x10^-16 N, a factor of 10 less than the sensitivity of the primary cilium reported by Resnick and Hopfer (10) and cited by the authors.

But even if the sensitivity was appropriate, any such stimulation of the primary cilium would require the capacity for its relative displacement with respect to the cell body—such as embedding the free end of the cilium in a large mass other than its own cell body, so that the presumed gravitational variations could physical displace either the cell body or the cilium but not both.  The authors describe no such mechanism, but it is the subject of at least one recent report (11).

Finally, the authors find evidence of a gravitational effect on cells in culture through, not their altered rates of gene expression, but their increased variability in gene expression at local high tide, a time of supposedly reduced gravity on earth due to the moon’s pull.  However, they did not hypothesize that such variability would result, and gave no reason why it was a logical or meaningful result from such exposure.

For these reasons, Moorman’s and Shorr’s results cannot be accepted as supporting any gravitational force transduction role of the primary cilium of the Rohon-Beard neuron of the developing zebrafish spinal cord, and, by extension, a direct gravitational effect on any single cell that depends on a mechanism ascribed to the Rohon-Beard neuron.  That is not to say that such an effect may not exist, nor that it could not explain many of the observed responses to weightlessness of biological specimens ranging from isolated cells in culture to intact higher mammals.  But, there is ample justification for most—if not all—of the observed effects of hypo- and hypergravity on complex biological systems to be derived from the influence of gravity on multicellular organ systems at a macroscopic level.

Extraordinary claims require extraordinary evidence; unfortunately, the evidence provided by Moorman and Shorr does not suffice.

Key words: primary cilium, Rohon-Beard, zebrafish, neurogenin-3.1:gfp (ngn3.1:gfp), gravitational transducer, Moorman, Shorr, Developmental Dynamics, high tide, low tide, lunar tide, solar tide, Raritan River, New Brunswick, Melvill-Jones, gravity clamp

References.

1. See http://onlinelibrary.wiley.com/journal/10.1002/(ISSN)1097-0177/homepage/ForAuthors.html.
2. Primary Cilia: the sensory organs of our cells? http://prezi.com/itzhjckaguuc/primary-cilia-the-sensory-organs-of-our-cells/, accessed Apr. 20, 2014.
3. Satir, P., Pedersen, L., and Christensen,S.  The primary cilium at a glance.  J. Cell Science 123, 499-503 (2010)
4. Alaiwi, W., Lo, S., and Nauli, S.  Primary cilia: highly sophisticated biological sensors. (Review.)  Sensors 9, 7003-7020 (2009).
5. I have relied on NASA’s Cosmicopia webpage (http://helios.gsfc.nasa.gov/qa_earth.html#tide, accessed on August 14, 2010) for most of the geophysical background information used in this letter.
6. Source: U.S. Naval Observatory, http://aa.usno.navy.mil/cgi-bin/aa_pap.pl, accessed Aug. 14, 2010.
7. Source: Mobile Geographics, http://mobilegeographics.com:81/locations/4111.html, accessed Aug. 14, 2010.
8. Source: Gravimeter, http://en.wikipedia.org/wiki/Gravimeter, accessed Aug. 17, 2010.
9. Melvill Jones, G., and Young, L. R.  Subjective Detection of Vertical Acceleration: A Velocity-Dependent Response?  Acta Oto-Laryngologica 85(1): 45-53, 6 January 1978.
10. Resnick, A., and Hopfer, U.  Force-response considerations in ciliary mechanosensation.  Biophys. J. 93: 1380-1390, 2007.
11. Blanco, C., Drayer, I., Kim, H., and Wilson, R.  Mathematically modeling chondrocyte orientation and division in relation to primary cilium, published online at http://www.math.ucla.edu/~bertozzi/RTG/Summer2010/Bonegrowth-REU-2010-Part-II.pdf, August 6, 2010.

Tales of Immersion 2: Two Pictures, No Answers (But Many Inferences)

In October 2013, I purchased a pair of photographs on eBay which appear to illustrate an early episode in the history of neutral buoyancy by water immersion: Figure 1, labeled 69442B, and Figure 2, labeled 69471B. They were listed on eBay under the title, “2 ASTRONAUT [sic] UNDER WATER GENERAL DYNAMICS (181234004788#).” The eBay seller provided no provenance or additional information. All I know is what was stamped and written on the backs of the photographs: the photo numbers and the notations “unclassified,” “General Dynamics,” and “Convair Division.” Since then, I have been trying to uncover the story behind these pictures.

Figure 1. General Dynamics, Convair Division, photo 69442B.

Figure 2. General Dynamics, Convair Division, photo 69471B.

Nowadays everyone knows that astronauts train underwater for their spacewalks, or extravehicular activities (EVA). It was even featured prominently in the movie “Armageddon” (IMDb, 1998), probably the closest thing to “correct” in the whole movie.

The Convair Division of General Dynamics was in San Diego, California. A quick query to Francis French at the San Diego Air & Space Museum, repository for many of the company’s documents and records, did not yield any insights. It became clear that if I was to learn more about this particular activity, it would come from an analysis of the photos themselves.

Luckily, this pair of images seems as if it were composed specifically to tutor me on a step-wise analysis, starting with the human figure, working outward to the setting and ending (I hope) with a date and a context for the activity in the pictures. The steps of the analysis practically suggested themselves:

• Person(s)
• Central person(s), typically the test subject or trainee
• Supporting person(s)
• Body-worn equipment
• Garments
• Real or simulated life support equipment
• Tools
• Activities
• Test fixture
• Setting
• Water tank
• Location
• Time factors
• Approximate calendar date
• Temporal relationship of images

I already knew that GD was an early developer of neutral buoyancy techniques using water immersion for astronaut training and procedures development (Mattingly and Charles, 2013). The company was certainly no stranger to neutral buoyancy, but at a different scale than a single astronaut: it has been building submarines for the U.S. Navy since 1900 (General Dynamics, 1998).

GD came close to becoming the first contractor to provide such training to NASA’s Gemini astronauts. In July 1966, NASA astronaut Scott Carpenter visited GD’s underwater facility in San Diego and was impressed with their capabilities. He was familiar with Convair from previous visits, starting in 1959 to monitor the development and construction of the Atlas rockets which boosted the Mercury capsules into low Earth orbit (Voas, 1960).

Carpenter was on his way back to Houston intending to recommend that the company train the Gemini astronauts. But he was diverted[1] to Baltimore, Maryland, apparently with no more information than to visit a group of contractors at the McDonogh School in nearby Owings Mills. He arrived unannounced at the school’s pool where he witnessed the neutral buoyancy capabilities developed by Environmental Research Associates (ERA). What he saw at McDonogh changed his mind, and soon thereafter Gemini astronauts arrived at the McDonogh School for EVA training (Mattingly and Charles, 2013).

I don’t know what he had seen in San Diego, but whatever it was is important for an understanding of NASA’s decision to go with ERA.

Persons. There was one central person in both images. Figure 2 also included a second person, probably a safety diver or in-water observer: note the second person’s right hand and forearm in a wetsuit visible behind the central person’s right elbow, and his right leg visible through the circular opening to the left of the central person’s right leg.

Body-worn equipment. The central person was wearing a full-pressure suit, apparently an Arrowhead version of the B.F. Goodrich Mark 4 garment (Young, 2009,  pp. 16-23), judging from its distinctive features including its unique zipper configuration (Figure 3). The suits shown in Figures 1 and 2 may have been different suits based on some visible structural details, although differences in lighting may explain the variation. The garments were apparently pressurized with water, not air, as indicated by the absence of external ballast on the torso and limbs and by the scuba mask visible inside the closed helmet. It appears that the transparent helmet visor has been removed to accommodate the scuba mask, but the visor frame assembly appears intact.  The helmet was prominently (and conveniently) labeled “General Dynamics” and “Convair Division.”

Figure 3. Arrowhead variant of B.F. Goodrich Mark 4 suit. Identification based on specific features in both Figures 1 and 2 and in image of Mark 4 from National Air and Space Museum: red, lower left leg fitting; green, upper left leg fitting; blue, right thorax fitting; yellow, right forearm corrugation unique to Arrowhead variants (see also corrugated sections visible above and below knees, and below elbows in all three images; corrugations around waist not visible in General Dynamics suit, and above elbow only in Figure 1). (Photo credits: General Dynamics, left and center; National Air and Space Museum, right.)

Life support for the central figure appears to have been provided by a large diameter pressurized hose extending horizontally underwater to the central person from out of frame at the left. It seems to have connected to the upper back of the test subject, between the helmet and the middle of his back. A thinner black cable, possibly a telephone line, was bundled with the pressure hose. In Figure 2, the pressurized hose was secured to the test fixture, possibly to provide stress relief and facilitate mobility by the test subject.

The central person was also wearing what appears to be a white mockup of a Garrett AiResearch EVA Life Support System (ELSS) (Figure 4) on his chest in Figure 2 only. This identification is based on the location and size of the unit, and its distinctive top panel (Thomas and McMann, 2006, pp. 66-7).

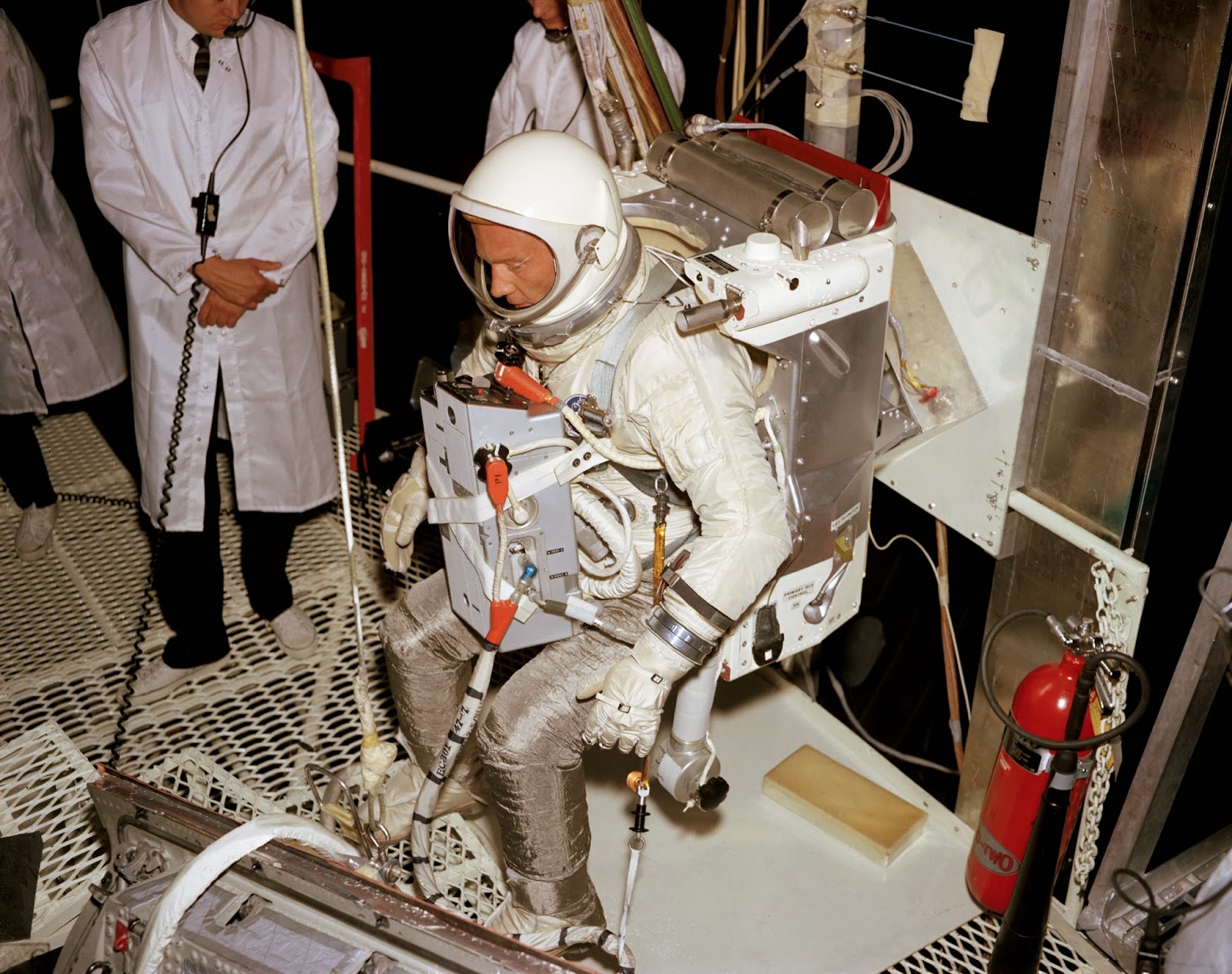

Figure 4. Astronaut Edwin Aldrin in 30-foot vacuum chamber of the McDonnell Aircraft Co., St. Louis, Mo., on Aug. 15, 1966, wearing Garrett AiResearch EVA Life Support System (ELSS) and Ling-Temco-Vought Co. (LTV) Astronaut Maneuvering Unit (AMU) for U.S. Air Force experiment D012. ELSS is on his chest, and AMU is his large backpack. (Photo NASA S66-51073, 1966.)

Tools. In both pictures, the central person appeared to have his left leg inside a loose strap attached to what might have been a simplified wooden mockup of the Astronaut Maneuvering Unit (AMU) (Figure 4). The AMU was developed by the Ling-Temco-Vought Co. for the U.S. Air Force experiment D012 (Shayler, 2004, p. 57). Its tentative identification derives from features suggesting over-the-shoulder thruster assemblies and side-mounted hand controllers, and from the curved cut-out at its top to accommodate the wearer’s helmet, all present in the AMU (Figure 5). However, its front-to-back depth and the detail of the over-the-shoulder and side-mounted features merely suggest the structure of the corresponding features of the AMU; perhaps the GD mockup represented only the aspect of the AMU which would have interfaced with the astronaut’s suit and body. The visible straps around the subject’s left leg differ between the photographs: in Figure 1, there was a section of black fabric, presumably Velcro, while in Figure 2 the corresponding area appears white.

Figure 5. General Dynamics’ possible mockup (left image) of LTV AMU (right image). Detail from Figure 1 shows mockup elements corresponding to features on AMU: semi-circular cut-out for wearer’s helmet (bracketed at top of both images); over-shoulder protuberances in mockup corresponding to reverse thrusters (middle two-headed arrow); lower protuberances on mockup correspond to hand-controller mounts on AMU (bottom two-headed arrow). Scale model at right illustrates astronaut position during AMU operations. (Photo credits: General Dynamics, ca. 1964, left image; John Charles at National Museum of U.S. Air Force, 2011, right image).

A thin curved pipe or tube, apparently metallic and connected to the top of the AMU mockup (seen more clearly in Figure 1), was used by the central person as a hand-hold, but was not present on the LTV AMU.

The presumed AMU is seen in both photographs to be in proximity to the large test fixture, orthogonally aligned in Figure 1 but slightly askew in Figure 2, indicating that may have been loosely affixed to the test fixture.

Activities. In Figure 2, the central person’s umbilical appeared to originate out of frame to the left, and was routed through the open top side of the cylindrical structure, or tunnel, before exiting through the open end of the tunnel and then connecting to the figure. Apparently the central person had translated out of the tunnel through its open end before arriving at his work site, suggesting egress from an airlock for the EVA.

The central person interacted with the faux AMU in an unlikely manner. His left leg, but not his right leg, was behind a loose strap attached to the AMU. This is true in both photographs, suggesting it was a common practice and therefore intentional. However, it is not consistent with astronaut interaction with the AMU in other testing or spaceflight settings. There is no sign of any mobility aids or restraints as were provided for in-flight AMU activities (see Figure 6). In fact, there are no hand holds or mobility aids visible anywhere on structure.

Figure 6. Astronaut Eugene Cernan in weightlessness training aboard KC-135 wearing ELSS and AMU. Note handholds and foot restraints as flown on Gemini-9, which were notably absent in Figures 1 and 2. (Photo credit: NASA, 1966.)

Test fixture. The dominant feature of both photographs was a wooden framework about 10 feet (3.0 meters) tall, about 6 feet (1.8 meters) wide at its widest point, and about 12 feet (3.7 meters) in length. It was apparently painted, and what would have been contiguous surfaces were substituted by a metal mesh. The largest portion was laterally dissimilar: a large half-cylinder was mated to a rectangular structure. There was a triangular brace in the top half of main cylinder. The smaller portion was the tubular tunnel, about 3 feet (1 meter) diameter and 8 feet (2.4 meters) long, attached to the lower center of main section. A wire mesh disc at the unattached end of the tunnel may have simulated a hatch cover, shown swung open toward the right (Figure 2). Both the hatch end of the tunnel and the larger section appeared to be weighted down by ballast in fabric bags about 6 inches across.

Given the aerospace nature of work done by GD and the astronautical appearance of the central person, the test fixture may have been a representation of a then-current spacecraft design. The pairing of a tunnel and a large broad-faced bulkhead suggest either the Gemini-B/Manned Orbiting Laboratory (MOL) program of the Air Force or NASA’s Apollo Lunar Module (LM) docked to its Command Module.

The Gemini-B/MOL interpretation is unlikely for several geometrical reasons: the tunnel appears straight, whereas the tunnel from the MOL to the Gemini-B heat shield was angled and bent; the tunnel terminated too close to the periphery of the presumed heat shield, and at its bottom instead of at its top; and the diameter of the large element appears greater than the Gemini heat shield diameter (Figure 7).

Figure 7. Gemini-B/MOL tunnel configuration in artist’s concept from McDonnell Aircraft Company in 1967 compared with configuration of General-Dynamics mockup in Figures 2. Large bulkhead (bracketed in upper image) in mockup has different features and size than Gemini-B heat shield (bracketed in lower image). Tunnels in mockup and concept (indicated by two-headed arrows) have different diameter and shape. (Photo credit: McDonnell Aircraft Co., ca. 1967.)

Figure 8. Two-headed arrows indicate points of correspondence supporting the tentative identification of the General Dynamics test fixture as a version of the Lunar Module (LM) TM-1 mockup configuration, showing ascent stage (upper portion) with newly-added triangular windows for standing (not seated) astronauts but retaining round forward hatch originally intended for docking with Command Module. TM-1 was current between March 1964 and January 1965. (Photo credit: Grumman, 1964.)

Instead, the large element had some features which may correspond to the structure of the ascent stage and crew compartment of an early version of the LM (Figure 8). Of prime significance is a recessed triangular frame with a wire mesh interior, which appears to represent the forward facing window in the left half of the LM crew cabin. The triangular windows are unique to the LM, so their inclusion is strong evidence that this is a LM mockup. This is further supported by the combination of the rectangular central portion, from the bottom of which the tunnel exits, and the recessed rounded portion in the right half of the picture, which represented the left half of the cylindrical crew cabin. The round opening at the bottom of the rectangular section could have been the circular hatch once planned for the LM, which by 1964 was simply a vestige of its discarded role as a docking port (Aviation Week & Space Technology, 1964); by January 1965 it had been replaced by the familiar square hatch. Together they resemble most of the LM crew cabin structure, minus the corresponding rounded portion on the photo-left of the rectangular structure, which would have represented the right half of the cylindrical crew cabin. These features correspond to the stage of LM evolution represented by the TM-1 mockup, which was current between March 1964 and January 1965 (Godwin, 2007, pp. 72-3).

The tubular tunnel terminating in the circular LM hatch might have simulated the tunnel of another spacecraft which would have been docked to the front port of the LM. However, there is no external structure around the tunnel, and as described above such a docking is inconsistent with the inferred stage of LM development. Therefore, the tunnel attached to it does not reflect a contemporary aspect of the Apollo LM or its counterpart the Command Module.

Perhaps it represents an airlock attached to the front port of the LM (Figure 9). This might have been part of a proposal to use the LM in an Earth-orbiting research or operations role. Such an application is not shown among the options for LM-derived vehicles advertised by Grumman (Grumman Aircraft Engineering Corp., 1970), but it may have been considered briefly nonetheless.

Figure 9. Author’s concept of an airlock or other tubular structure attached to LM forward hatch. The right-hand panel in this image illustrates a hypothetical explanation of the mockup shown in the left-hand panel, but no such spacecraft concept is known from the available literature. Or it might just be a product of my pareidolia. (Photo credits: left, General Dynamics; right, John Charles, 2014.)

There was a proposal to use the LM for long-duration lunar surface habitation (NASA, 1967, p. 29) which incorporated an airlock to minimize the loss of cabin atmosphere during repeated EVAs (Figure 10). However, that was a 1967 concept for use in a gravitational environment (albeit 1/6-g), not a ca. 1964 concept for weightlessness, and that airlock was noticeably different from the structure in Figures 1 and 2.

Figure 10. Lunar Module Shelter concept with airlock (circled in red). LM Shelter was proposed to support multi-week lunar surface missions in the Apollo Applications Program. This is the closest match to the concept illustrated in Fig. 9. (Photo credit: NASA, 1967.)

In light of this uncertainty, it is possible that the test fixture in Figures 1 and 2 may simply represent a generic LM-derived spacecraft concept for the neutral buoyancy activities being undertaken, and its specific features were not intended to correspond to actual or planned spacecraft.

The test fixture was apparently repositioned in the interval between Figures 1 and 2. In Figure 1, the rectangular component appeared nearly aligned with the three vertical lights between two windows. In Figure 2, the rectangular component was more aligned with the middle of the observation window to the left of the three lights. The ballast bags appear not to have been rearranged, indicating that the fixture was moved but not emersed and resubmerged.

Setting. Both photographs were made in the same facility, a water tank about 10 feet deep. If the large element of the test fixture represents the Lunar Module ascent stage (Grumman Aircraft Engineering Corp., 1964), then the depth of water required to submerge it completely (as demonstrated in Figure 2) was 9.4 feet (2.9 meters). The scenes in both images were well-lighted for photography purposes: from above water, perhaps using natural sunlight, suggested by the refraction patterns of surface ripples on the floor in Figure 1, and also apparently from a subsurface light source, out of frame left, judging from the shadows in Figure 2. The facility had at least three large distinctive observation windows and arrangements for subsurface lighting, suggesting a public facility for underwater shows or exhibitions. Thus, the setting was presumably an existing underwater exhibition facility in the San Diego area, in proximity to Convair.

A Google search of public aquariums near San Diego produced two possible venues. The Aquarium of the Pacific[2] in Long Beach, California, was established in 1998, according to the response to an email query, and was thus not a candidate. The Birch Aquarium at the Scripps Institute of Oceanography[3] was opened in 1992, and was likewise not a candidate. However, it was preceded by the T. Wayland Vaughn Scripps Aquarium-Museum in La Jolla, California, which existed from 1951 to 1992. A photograph (Figure 11) from the 1967 annual report (Scripps Institute of Oceanography, 1967, p. 35) shows what may be an interior view of one of its distinctive windows; it appears similar to the windows in Figures 1 and 2. Thus the Vaughn Aquarium may have been the setting for the neutral buoyancy activities in the photographs. However, some questions remain to be answered, such as how a tank which was presumably a habitat for its marine occupants came to be emptied, cleaned and made available for GD’s use.

Figure 11. Fred Spiess (right), Director of Scripps Institute of Oceanography, speaking with Donald Wilkie (left), Curator of the Vaughn Aquarium-Museum ca 1966. Note similarity of observation windows to windows in Figures 1 and 2. (Photo credit: Scripps Institute of Oceanography, 1967.)

Time. GD’s use of neutral buoyancy techniques was limited to the early to mid 1960s based on other evidence (Mattingly and Charles, 2013). The Vaughn Aquarium was in existence from 1951 to 1992. The Mark IV-type full pressure suits were introduced into service by the U.S. Navy in the 1950s (Young, 2009, pp. 19, 22) and decommissioned suits were available for widespread ground testing by 1964 (Mattingly and Charles, 2013). The presence of the mockup ELSS in Figure 2 indicates a date between January 1964 when the ELSS design was finalized (Thomas and McMann, 2006 p. 66) and November 1966 when the end of the Gemini program also ended use of the ELSS and presumably its usefulness in neutral buoyancy simulations (a different system was already in development for the upcoming Apollo flights). The faux AMU placed the date between May 1964, when LTV won the contract to build three flight units for U.S. Air Force experiment D012 (Shayler, 2004, p. 57) and September 1966 (Hacker and Grimwood, 1977), when the AMU was definitively deleted from the Gemini flight program (although the Air Force remained interested in using it for some period of time thereafter (Wade, undated)). The LM configuration TM-1, with its round forward hatch, was current between March 1964 and January 1965 (Godwin, 2007,  pp. 72-3). Thus I estimate the approximate calendar date for the two images as no earlier than May 1964, no later than September 1966, and probably not later than early 1965.

The scenarios in the two photographs are superficially similar but contain differences indicating they are from two different sessions. Presumably 69442B preceded 69471B, and the differences between them represent improvements or intentional modifications in the test scenario. These differences have been discussed above and are summarized in Table 1:

Table 1. Similar and different elements of Figures 1 and 2.

	Common to both Figure 1 and 2	69442B (Figure 1) only	69471B (Figure 2) only
Person(s)	Test subject	--	Support diver
Body worn equipment	Water-pressurized Arrowhead Mk. 4 suit	Forearm bellows section visible	Forearm bellows section absent or covered ELSS
Tools	Faux AMU	Mounted orthogonal to test fixture Black Velcro strip	Mounted rotated leftward re: test fixture White Velcro strip
Activities	Left leg behind strap	--	--
Test fixture	LM mockup Airlock mockup Ballast bags apparently not re-stacked between photographs	Near 3 vertically-aligned lights	Aligned with window to left of 3 vertically-aligned lights
Setting	Vaughn Scripps Aquarium	Lighted from above, possibly natural light	Lighted from left of scene
Time factors	Ca. 1964	Not same session as 69471B	Not same session as 69442B

Discussion.

The available evidence indicates that the spacecraft and tool mockups in the photographs were likely used between mid-to-late 1964 and early 1965, although they might have continued to be used after those dates for general studies in neutral buoyancy.

The similarities in arrangement of the central person, the test fixture, the background and the perspective of the photographs suggest that they were made within a single session, perhaps showing a sequence of activities. On closer inspection, it becomes apparent that there were differences in lighting, body-worn equipment, features of the tools, possibly the space suit and even the location of the test fixture (see Table 1). These differences indicate that they were made during separate sessions, perhaps even on different days.

It is of interest that, despite their differences, the two images show the central person in nearly the same position and orientation with respect to the test fixture. He was above the top of the faux AMU, with his left leg inserted behind the same strap. This suggests that the action was intentional and significant. However, this does not represent an effective interface with the backpack-style AMU. Assuming a leg strap was part of the AMU restraint system, it should not have been necessary to enter it from the top of the unit. In addition, by early 1966, when Gemini astronauts were training to use the AMU in flight, there was a significant set of fixtures associated with donning it: handholds, footholds, straps and hoses (Figure 6). Despite those aids, Gemini 9 astronaut Eugene Cernan, the first person who attempted the task in spaceflight, abandoned the task it because the required physical effort overwhelmed his suit cooling system (Evans, 2013).

Perhaps the simplistic approach to AMU donning shown in these images was an early stage in the progressive development of the more robust (but still inadequate) donning aids used on Gemini 9, but any role of GD in preparations for AMU flights, including donning studies, has yet to be uncovered. If, however, the tool I have identified as a faux AMU was not, in fact, a mock AMU, then this analysis is moot, and the device being simulated remains to be identified.

Besides the faux AMU, there is the ambiguous test fixture and the mission it supported. Its resemblance to an early design for the Grumman’s Lunar Module suggests that GD was evaluating extravehicular activities associated with the Apollo program or perhaps the follow-on Apollo Applications Program (AAP) (Wikipedia, 2014; Shayler, 2002), which would have utilized surplus Apollo vehicles for scientific missions in Earth orbit as well as on the Moon. Judging from the course of the life support umbilical, the test subject had translated from the open end of the tubular tunnel, presumably representing an airlock, to the faux AMU which was affixed to the lower left front panel of the LM mockup, below its left forward window. While the AMU or similar maneuvering units were considered for AAP use (Figure 12), I have not seen any plans to use them in conjunction with a LM-derived vehicle.

Figure 12. Illustration of AMU application during an AAP mission outfitting a Saturn IVB upper stage for future in-orbit use. (Photo credit: Douglas Missile and Space Systems, 1965.)

What does all this mean? A great amount of detail can been inferred, but how close have my inferences come to the reality of GD’s role in spaceflight neutral buoyancy techniques? Were these photos really made in 1964? Where? What were the test fixtures intended to simulate? Does 69442B predate 69471B? Why was the scene duplicated so closely on a second occasion, and why were the obvious changes introduced? Why have no other photos surfaced?

If in fact these images date from 1964, it was two years before Carpenter almost recommended GD for the NASA contract. During those two years they must have made as much progress as ERA. My colleagues Francis French and Alan Renga at the San Diego Air & Space Museum, continued searching their General Dynamics records and found a document dated July 1968 (Braxell and Thomson, 1968) which reported on a different type of underwater work by subjects wearing the Mark 4 suit as well as in a Gemini-type suit; however, it is silent on the neutral buoyancy work illustrated in Figures 1 and 2.

I have taken my forensic analysis of these two photos as far as I can, without new information. Additional questions include: where are the photos and reports from 1965 and 1966 which document the capabilities that impressed Carpenter? Who funded that work? How much longer did they pursue neutral buoyancy work after it became obvious that NASA would not support it?

Maybe I can learn more when I am in San Diego in May 2014 for the 85^th Annual Scientific Meeting of the Aerospace Medical Association. I will visit the San Diego Air & Space Museum, and possibly the Scripps Institute of Oceanography. Perhaps some of the answers are awaiting me there.

[Edited for clarity, 17 Feb. 2014]

Acknowledgements.

My thanks to Addie Eure, Marketing Coordinator, Birch Aquarium at Scripps, the anonymous Guest Support Specialist, Aquarium of the Pacific, and especially to Francis French and Alan Renga, San Diego Air & Space Museum.

Bibliography.

Aviation Week & Space Technology. 1964. Aviation Week & Space Technology. February 10, 1964.

Braxell, R. R. and Thomson, W. G. July 1968. Selected Experiments in the Assembly of Structures in Space. Life Sciences Department, Convair Division. San Diego : General Dynamics, July 1968. Sponsored by Aero Propulsion Laboratories, Wright-Patterson Air Force Base, Ohio. Contract F33-615-67-C-1302, "Assembly and Maintenance of Lightweight Metallic Structures in Space".

Cunningham, Walter. 1977. The All-American Boys. New York : Macmillan Publishing Co., Inc., 1977. ISBN 0-02-529240-4.

Evans, Ben. 2013. Date With An Alligator: The Trials of Gemini-IXA. Space Safety Magazine. [Online] June 7, 2013. [Cited: Dec. 27, 2013.] http://www.spacesafetymagazine.com/2013/06/07/date-alligator-trials-gemini-ix-a/.

General Dynamics. 1998. General Dynamics Electric Boat. [Online] 1998. [Cited: Jan. 1, 2014.] http://www.gdeb.com/about/history/.

Godwin, Robert. 2007. The Lunar Exploration Scrapbook / A Pictorial History of Lunar Vehicles. Burlington : Apogee Books, 2007. 978-1-894959-69-8.

Grumman Aircraft Engineering Corp. 1970. Apollo Program: Grumman's "Lunar Module Derivatives for Future Space Missions," Circa 1970... Heritage Auctions. [Online] 1970. [Cited: Jan. 19, 2014.] http://historical.ha.com/c/item.zx?saleNo=6075&lotIdNo=28003.

Grumman Aircraft Engineering Corp. 1964. Inboard Profile of the Lunar Excursion Module, 1964. National Archives, Online Public Access (OPA). [Online] March 10, 1964. [Cited: December 4, 2013.] Entry 55, Box 3.

http://research.archives.gov/description/2657372. 2657372.

Hacker, Barton C. and Grimwood, James M. 1977. On the Shoulders of Titans. Washington : National Aeronautics and Space Administration, 1977. p. 371.

IMDb. 1998. Armageddon (1998) Trivia. [Online] 1998. [Cited: Jan. 24, 2014.] http://www.imdb.com/title/tt0120591/trivia.

Mattingly, G. Sam and Charles, John B. 2013. A personal history of underwater neutral buoyancy simulation. The Space Review. [Online] February 4, 2013. [Cited: December 4, 2013.] http://www.thespacereview.com/article/2231/1.

NASA. 1967. Lunar Mission Planning Data Book. Lunar Missions Office, NASA Manned Spacecraft Center. Houston : NASA Manned Spacecraft Center, 1967. p. 142. Library, Center for Advanced Space Studies, Houston TX 77058. TL 789.8 .U6 M282 1967.

NASA. 2008. NASA - T-38A Talon Performance and Specifications. Dryden Flight Research Center. [Online] Sep. 22, 2008. [Cited: Feb. 15, 2014.] http://www.nasa.gov/centers/dryden/aircraft/T-38/performance.html#.Uv9nEPldWSp.

Scripps Institute of Oceanography. 1967. Annual Report for the Year Ending June 30, 1967. Scripps Institute of Oceanography. La Jolla, Calif. : s.n., 1967. p. 35.

Shayler, David J. 2002. Apollo: The Lost and Forgotten Missions. 1st. Chichester : Springer, 2002. p. 344. ISBN 978-1-85233-575-5.

Shayler, David J. 2004. Walking in Space. Chichester : Praxis Publishing Ltd., 2004. 1-85233-710-9.

Thomas, Kenneth S. and McMann, Harold J. 2006. US Spacesuits. Chichester, UK : Praxis Publishing, Ltd., 2006.

Voas, Robert B. 1960. Project Mercury Astronaut Training Program. NASA Space Task Group, Langley Field, Va. 1960.

Wade, Mark. undated. 1966.11.18 - NASA plans to include the DOD's astronaut maneuvering unit "back pack" aboard AAP flights. Encyclopedia Astronautica. [Online] undated. [Cited: Dec. 16, 2013.] http://www.astronautix.com/details/nas22002.htm#chrono.

Wikipedia. 2014. Apollo Applications Program. Wikipedia. [Online] Jan. 10, 2014. [Cited: Jan. 24, 2014.] http://en.wikipedia.org/wiki/Apollo_Applications_Program.

Young, Amanda. 2009. Spacesuits / The Smithsonian National Air and Space Museum Collection. 1st. Brooklyn : powerHouse Books, 2009. 978-1-57687-498-1.

---

[1] If Carpenter was piloting a NASA T-38, this diversion was not trivial. Google Earth gives the straight-line distance from San Diego to Baltimore as about 2,300 miles. The T-38 is usually refueled every 700 miles (Cunningham, 1977 pp. 70-75), so a direct flight from San Diego to Baltimore would have needed three intermediate stops. A NASA website (NASA, 2008) gives the range of the T-38 as about 1,140 miles, although practical considerations such as weather and safety margins required more stops. Or, he might have flown commercial.

[2] Aquarium of the Pacific, 100 Aquarium Way, Long Beach, CA 90802, www.aquariumofthepacific.org; email response received 25 Oct. 2013.

[3] Birch Aquarium at Scripps, 2300 Expedition Way, Scripps Institute, La Jolla, San Diego, CA 92037, www.aquarium.ucsd.edu; email response received 2 Dec. 2013.
